The video surveillance industry is witnessing a massive growth due to increase in the use of surveillance cameras for security and protection. The innovations in terms of video surveillance cameras are also motivating the development of the video surveillance storage market. Increase in the number of facility management companies has also positively favored the demand for video surveillance storage. Moreover, the escalating security concerns globally are prompting further expansion of the product range available in the market. Therefore, the adoption of NVR/DVR/memory card will continually fuel the market's expansion rate substantially in the following years.

Surveillance Storage

In the video surveillance application, the users build up the NVR/DVR/memory card as the data storage devices that require the provision of sufficient bandwidth as well as a minimum access latency to accommodate a massive influx of image data from the cameras. Nowadays, the performance and reliability of data storage devices for video surveillance systems are more critical than ever. Meanwhile, the ecosystem of video surveillance is migrating towards UHD image resolution [4K, 8K] and multi-functional requirements in the following application.
  • Smart camera
  • IP camera
  • Video display devices

JMicron have been providing the data storage solutions to the major leading manufacturers in the video surveillance market. Currently, the most up-to-date video surveillance platforms utilize JMicron’s 1:5 RAID 0/1/5/10/50 controllers, non-RAID SATA Port Multipliers and Port Selectors, a four-core ARM processor, a Linux operating system, a video management system (VMS), a 1Gbps Ethernet connection, and multiple video channels. These platforms can continuously operate 24/7/365 for smart express highway monitoring systems and municipal security systems around the globe.

Solutions Image

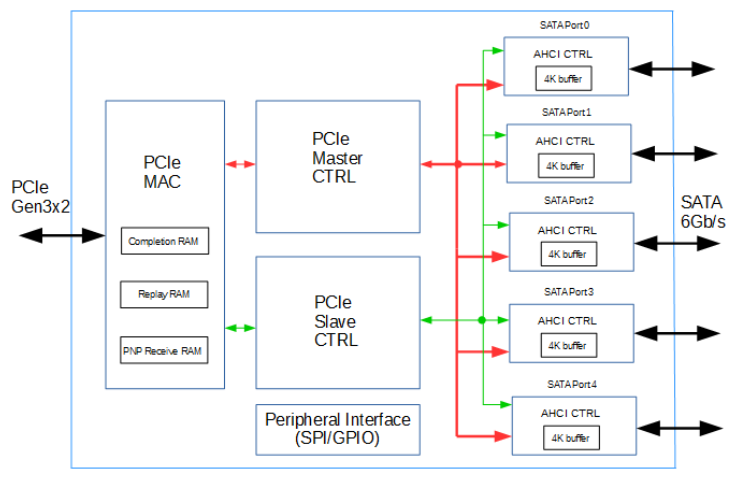

Block Diagram of JMB585

Solutions Image

Solutions for Surveillance Storage

JMB585

  • PCIe Gen3x2 to x5 SATA 6Gbps
  • Support Intel Thunderbolt 3 as storage expansion
  • Support DVR/NVR/NAS storage and server storage application

JMB582

  • PCIe Gen3x1 to Dual SATA 6Gbps
  • Support Intel Thunderbolt 3 as storage expansion
  • Support DVR/NVR/NAS storage and add-on card application

JMB575

  • 1 to 5 ports SATA 6Gbps
  • Port Multiplier / Port Selector
  • Cascaded mode: up to x15 drives

JMB394

  • 1 to 5 ports SATA 3Gbps Port Multiplier
  • RAID 0 / 1 / 3 / 5 / 10 / JBOD / CLONE
  • Configurable eSATA and LCM support

JMB393

  • 1 to 5 ports SATA 3Gbps Port Multiplier
  • RAID 0 / 1 / 3 / 5 / 10 / JBOD / CLONE
  • Configurable eSATA specification
